Power Up with Integrated EV Charging and Door Automation

Simple plug and play. Save big, with low upgrade and installation costs.

One Smart Connection.
Total Control.

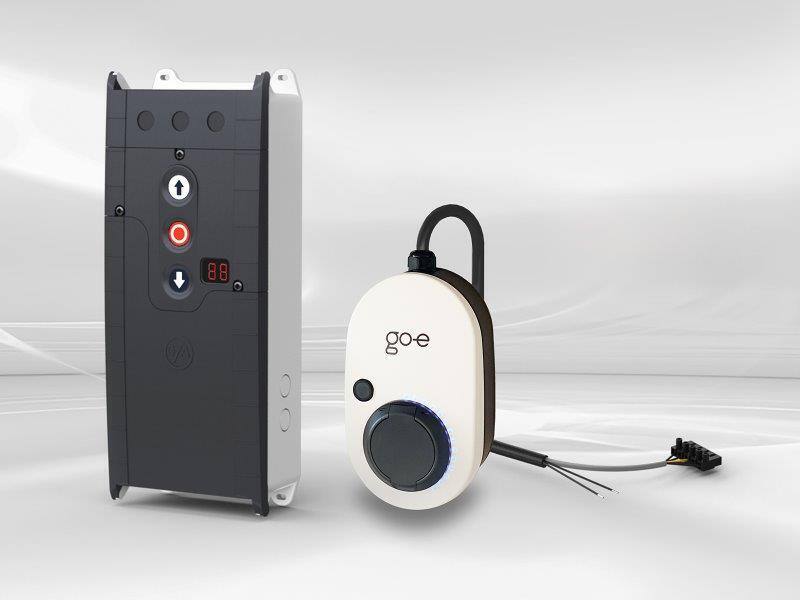

Revolutionise the way you manage industrial door automation and EV charging with GfA’s innovative solution: the TS 971 Control Panel with Charge Management Function and go-e Wall-Mounted EV Charger.

Designed for effortless integration, this plug and play system powers both your automated door and EV charger – all from one intelligent control unit.

Why Upgrade to a TS 971 with Charge Management?

Simple Plug and Play Installation

Just connect and go - no extra power supplies, no complicated setup.

Smart Charge Management

Intelligent power regulation means your door and charger work seamlessly without overloading your system.

Cost-Effective, Future-Ready Infrastructure

Save time and money on installation, and prepare your building for the future of electric transport.

EV Charging: an Industrial Revolution

Plug and Play Simplicity

Forget complex installations. Setting up your EV charger is as simple as plugging it into the TS 971 Control Panel with Charge Management Function. No need for independent wiring or additional power supplies – just connect and power up.

Smart Integrated Charge Management

The built-in charge management function ensures your maximum power consumption never exceeds 11kW. While your industrial door is in operation, the system automatically reduces the EV charger’s power. Once the door is stationary, full power to the charger resumes, promising uninterrupted operation while optimising energy use.

Cost-Effective EV Charging

Whether retrofitting or starting fresh, this all-in-one setup streamlines your installation. With only one power supply needed, you can avoid the high costs typically associated with independent EV charger installs. It’s a low-cost upgrade that adds long-term value to your site.

Built for Industrial and Commercial Environments

From warehouses and distribution hubs to automotive facilities and emergency services, this EV charging solution can be implemented across a wide range of industrial and infrastructure settings – quickly, cleanly, and reliably.

Secure and Flexible Charging

The go-e Wall-Mounted EV Charger includes RFID access control, so only authorised users can charge. Plus, the free go-e Charger app allows you to monitor, schedule, and control charging anytime from your mobile device.

Compact, Weather-Ready Design

With a robust IP65-rated enclosure, the go-e Charger is suitable for both indoor and outdoor installations. Its compact footprint makes it easy to fit, even in tight spaces.

Product Specifications

Product	Component	Specification
TS 971 Control Panel	Mains Supply	3N~400 V, PE
	Operating Frequency	50 Hz
	Mains Supply for External Loads	24 V / 350 mA
	Dimensions (W x H x D)	155 x 386 x 90 mm
	Dimensions with Mains Switch	155 x 386 x 117 mm
	UBS Modules	1
	Relay Contacts	2 (1 used to inform charger door is in operation)
	Supported Controls	Digital limit switch (DES), Mechanical limit switch (NES)
go-e Wall-Mounted EV Charger	Max Charging Power	11kW
	Connection Cable Length	1.8m
	Dimensions (W x H x D)	155 x 260 x 110 mm
	Protection Class	IP65
	Installation Location	Indoor and outdoor
Connection Kit	Mains Supply	CEE 3N~400 V (5-pole)
	Mains Supply Cable Length	0.7m (pluggable)

Ready to simplify your EV charging setup and upgrade your infrastructure?

Contact the GfA Sales Team

Discuss your project and place your order.

Prepare for installation

Everything you need in one box, ready to go, simple to install.

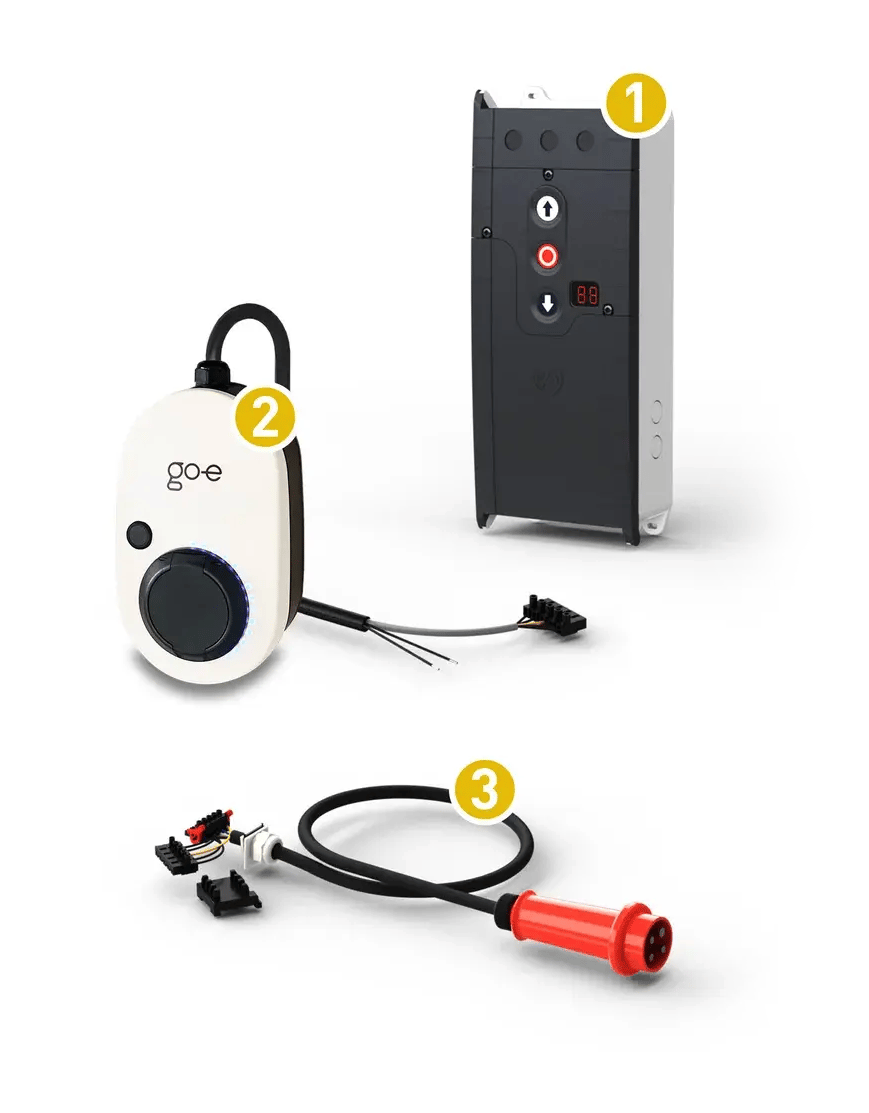

How to Get Started

Setting up your integrated charging and door automation solution is fast and straightforward. Here’s what you need:

The 3~ TS 971 Control Panel

With integrated charge management for seamless power control.

go-e Wall-Mounted EV Charger (11kW)

For fast, secure, and efficient charging.

The Connection Kit

Includes everything required to create a fully integrated, plug and play system.

Future-Proof Your Facility Today

With growing demand for electric vehicle infrastructure, now is the time to enhance your building with a smart, efficient, and integrated power solution. The TS 971 Control Panel with Charge Management Function and go-e Charger is more than an upgrade – it’s a step toward a cleaner, more connected future.

Order now and join the next generation of energy-conscious businesses.
