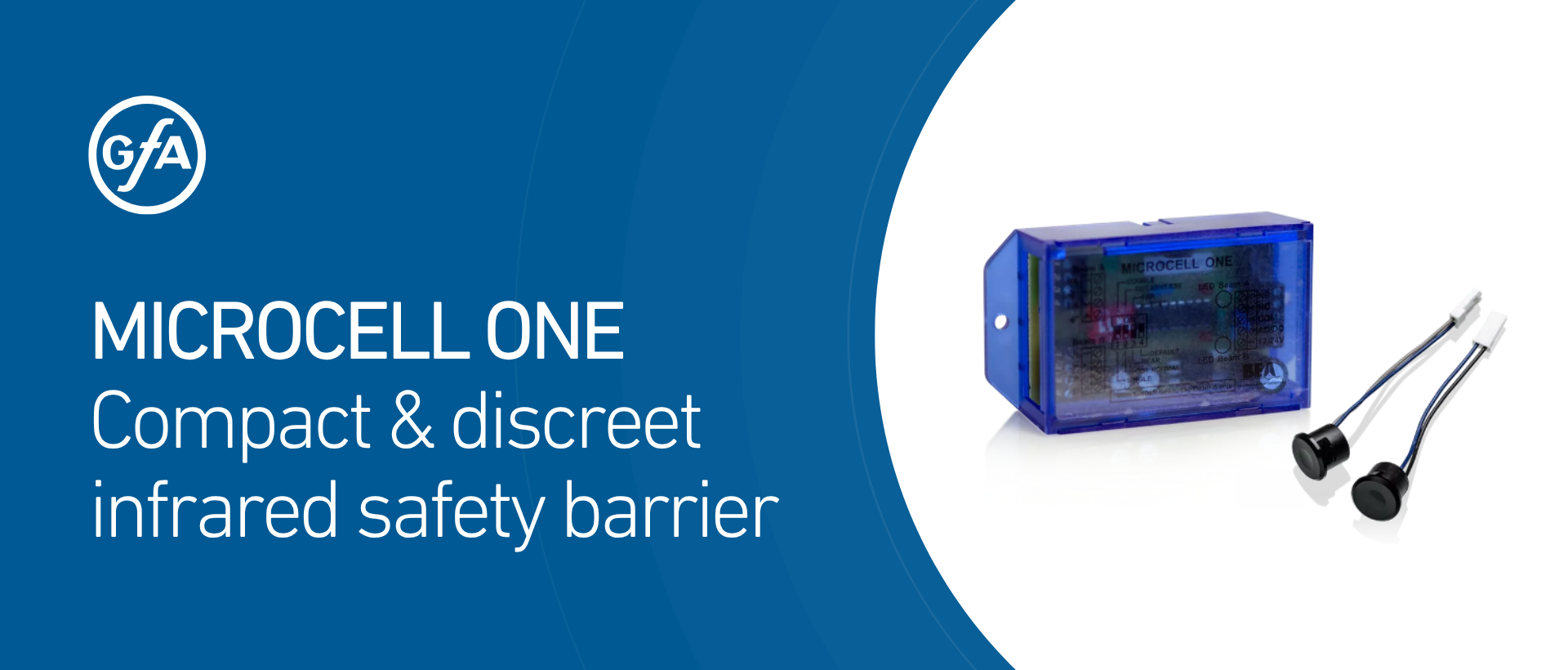

At GfA, we’re always looking ahead - bringing you the latest in smart, reliable technology for modern access systems. That’s why we’re excited to introduce MICROCELL ONE, a high-performance infrared safety barrier from BEA, now available with full GfA support.
Designed for both pedestrian and industrial doors, this advanced solution combines compact design, robust performance and compliance with the highest safety standards - making it a strong choice for installers, specifiers and facility managers alike.
Built for Versatility
MICROCELL ONE is engineered to perform across a wide range of environments, including:
-
Pedestrian and automatic doors
-
Industrial door applications (up to 10m)
-
High-security access points
Its flexible mounting options and straightforward installation make it ideal for both new installations and retrofits.
Powered by active infrared microprocessor technology, the system detects presence through beam interruption, ensuring reliable protection of pedestrians and vehicles in line with European directive 2014/30/EU.
Compact Design, Seamless Integration
One of MICROCELL ONE's standout features is its ultra-compact, cylindrical design. With built-in heads measuring just 10mm (12.4mm diameter), it can be mounted as low as 0.2m from the floor - allowing it to blend seamlessly into door profiles.
Key benefits include:
-
Clean, discreet appearance
-
Reduced risk of tampering or vandalism
-
Ideal for public and high-traffic environments
Reliable in Challenging Conditions
Despite its compact size, MICROCELL ONE is built to perform in demanding environments. It remains highly reliable in:
-
Direct sunlight up to 75,000 lux
-
Artificial light up to 25,000 lux
-
Internal and external applications, with IP65-rated waterproof heads and moisture-resistant construction
Fast, Accurate, and Dependable
When it comes to safety, speed and precision are critical. MICROCELL ONE delivers:
-
Detection range of up to 10m (depending on mounting height)
-
Rapid response time of ≤ 40 milliseconds
-
Operating range from –20°C to +55°C
The system includes a plug-in emitter and receiver heads, with a 5m cable (10m optional) and compact control box, providing built-in protection against wiring errors for further reliability and peace of mind.
Key Specifications at a Glance
-
Technology: Active infrared, microprocessor-based
-
Minimum range: 1m
-
Detection range:
-
5m - for min. mounting height of 0.2m
-
10m - for min. mounting height of 0.4m
-
-
Mounting height: From 0.2m
-
Response time: ≤ 40 milliseconds
-
Light immunity:
-
75,000 lux (sunlight)
-
25,000 lux (artificial)
-
-
Operating temperature: –20°C to +55°C
-
Head size: 10mm (built-in), 12.4mm diameter
-
Power supply: 12–24 V AC/DC
-
Current Consumption: 100mA
-
Output: 1 relay (max 50V, 1A)
-
Waterproof rating: IP65
-
Control box size: 94 x 52 x 28 mm
Why Choose MICROCELL ONE with GfA?
With its discreet design, fast response, and proven compliance, BEA’s MICROCELL ONE delivers the safety and performance modern door systems require. By choosing GfA, you benefit from UK based sales, service, and technical support every step of the way.
Ready to Upgrade Your Door Safety?
MICROCELL ONE sets a new benchmark in compact, compliant, high-performance safety for automatic and industrial doors. Get in touch with the GfA team today to discover how it can enhance your next project.
