CM60581/C Fire Control Panel 03

CM60581/C Fire Control Panel 03

CM60581/C Fire Control Panel 03

Part:

CM60581/C

Part Number:

20003821 00002

CM60581R Fire Control Panel 03 Repeater

CM60581R Fire Control Panel 03 Repeater

CM60581R Fire Control Panel 03 Repeater

Part:

CM60581R

Part Number:

20003826 00001

TS 971 ATEX

TS 971 ATEX

TS 971 ATEX Automatic Inside Area

Type of protection:

II 2(1)G Ex db eb [ia Ga] IIC T6 Gb / II 2(1)D Ex tb [ia Ga] IIIC T85°C Db

Supply voltage:

3~230 V, PE / 3N~400 V, PE /
3~400 V, PE

Operating frequency:

50 Hz / 60 Hz

Mains supply ratings for
external devices:

230 V AC / 1,6 A

Dimensions WxHxD:

338 x 540 x 228 mm

Automatic door
control for:

Mechanical limit switch NES

Operating modes:

CLOSE/OPEN in hold-to-run mode
CLOSE/OPEN in self-hold mode

Features:

With mains switch
With Motor overload protection
Evaluator for a safety edge system 8k2
Evaluator for Slack rope / pass door switch contact
Integrated Switch device for photo cell detection

TS 971 ATEX

TS 971 ATEX

TS 971 ATEX Automatic Outside Area

Type of protection:

To be used outside the explosion
proof area, with zener barrier
II 3(1)G Ex nA [ia Ga] IIC/IIB T4
Gc / II (1) D [Ex ia Da] IIIC for evaluation of a
safety edge system 8k2,
slack rope / pass door switch
and a photo cell detection

Supply voltage:

3~230 v, PE / 3N~400 V, PE /
3~400 V, PE

Operating frequency:

50 Hz / 60Hz

Mains supply ratings for external devices:

24 V DC / 0,35 A
230 V AC / 1,6 A

Dimensions
WxHxD:

375 x 375 x 188 mm

Automatic door control for:

Mechanical limit switch NES

Operating modes:

CLOSE/OPEN in hold-to-run mode
CLOSE/OPEN in self-hold mode

Features:

With mains switch
With Motor overload protection
Evaluator for a safety edge system 8k2
Evaluator for a slack rope / pass door switch contact
Integrated switch device for photo cell detection

TS 971 ATEX

TS 971 ATEX

TS 971 ATEX Deadman Outside Area

Type of
protection:

To be used outside the explosion proof area, with
zener barrier
II 3(1)G Ex nA [ia Ga] IIC/IIB T4 Gc / II(1)D [Ex ia Da] IIIC for
slack rope / pass door switch

Supply voltage:

3~230v, PE / 3N~400 V, PE / 3~400 V, PE

Operating frequency:

50 Hz / 60Hz

Mains  supply ratings
for external
devices:

24 V DC / 0,35 A
230 V AC / 1,6 A

Dimensions
WxHxD:

250 x 375 x 188 mm

Hold-to-run door control for:

Mechanical limit switch NES

Operating
modes:

CLOSE/OPEN in hold-to-run mode
OPEN in self-hold mode

Features:

With mains switch
With Motor overload protection
Evaluator for slack rope / pass door switch contact

CC61080 ATEX Reversing Starter Inside Area

CC61080 ATEX Reversing Starter Inside Area

CC61080 ATEX Reversing Starter Inside Area

Explosion protection:

Ex d [ia] IIB T5/Ex td A21 T95°C

Supply voltage:

3N~400V, PE

Operating frequency:

50 Hz

Dimensions WxHxD:

370 x 270 x 208 mm

Automatic door control for:

Dead man

Operating modes:

OPEN in self-hold mode
CLOSE in hold-to-run mode

Features:

With Motor overload protection
(for 0.37kw & 1.1kw drives)
Wall mounting reversing starter without push buttons
Intrinsic safe circuits for push buttons and Interlock switches enabling the use of Non Atex push button station and Non Atex Interlock switches e.g. Shootbolt Interlocks

TS 959

TS 959

TS 959

Mains supply:

1N~230 V, PE; 3N~400 V, PE
3~230 V, PE; 3~400 V, PE

Operating frequency:

50 Hz / 60 Hz

Dimensions W x H x D:
with mains switch:

155 x 386 x 90 mm
155 x 386 x 117 mm

Hold-to-run control for:

Digital limit switch DES
Mechanical limit switch NES

TS 971-XL

TS 971-XL

TS 971-XL

Mains supply:

1N~230 V, 3N~400 V

Operating frequency:

50 Hz / 60 Hz

Mains supply for
external loads:

24 V / 350 mA or
24 V / 1000 mA

Dimensions W x H x D:

300 x 400 x 165 mm

UBS modules:

1

Relay contacts:

2

Automatic control for:

Digital limit switch DES
Mechanical limit switch NES

Features:

Space for additional devices
4-pin main switch
3 DIN mounting rails
6 x M20 cable glands

TS 981-XL

TS 981-XL

TS 981-XL

Mains supply:

3N~400 V

Operating frequency:

50 Hz / 60 Hz

Mains supply for
external loads:

24 V / 1000 mA

Dimensions W x H x D:

300 x 400 x 165 mm

UBS modules:

5

Relay contacts:

2

Automatic control for:

Digital limit switch DES

Features:

Space for additional devices
4-pin main switch
3 DIN mounting rails
6 x M20 cable glands

TS 970

TS 970

TS 970

Mains supply:

1N~230 V, PE; 3N~400 V, PE
3~230 V, PE; 3~400 V, PE

Operating frequency:

50 Hz / 60 Hz

Mains supply for
external loads:

24 V / 180 mA

Dimensions W x H x D
with mains switch:

155 x 386 x 90 mm
155 x 386 x 117 mm

UBS modules:

1

Relay contacts:

1

Automatic control for:

Digital limit switch DES
Mechanical limit switch NES

WS 900 3~ NN 24v BOS  0.7m 18core cble, 3 Contactors

WS 900 3~ NN 24v BOS 0.7m 18core cble, 3 Contactors

WS 900 3~ NN 24v BOS 0.7m 18core cble, 3 Contactors

Mains supply:

1N~230 V, PE; 3N~400 V, PE
3~230 V, PE; 3~400 V, PE

Operating frequency:

50 Hz / 60 Hz

Control voltage:

24 V AC

Mains supply for
external loads:

24 V / 1000 mA

Dimensions W x H x D:

145 x 101 x 209 mm

3 Contactors 24 V for:

Mechanical limit switch NES

TS 970-XL

TS 970-XL

TS 970-XL

Mains supply:

3N~400 V

Operating frequency:

50 Hz / 60 Hz

Mains supply for
external loads:

24 V / 180 mA

Dimensions W x H x D:

300 x 400 x 165 mm

UBS modules:

1

Relay contacts:

1

Automatic control for:

Digital limit switch DES
Mechanical limit switch NES

Features:

Space for additional devices
4-pin main switch
3 DIN mounting rails
6 x M20 cable glands

TS 971 with Charge Management Function, go-e Wall-Mounted EV Charger & Connection Kit

TS 971 with Charge Management Function, go-e Wall-Mounted EV Charger & Connection Kit

TS 971 with Charge Management Function 1

Mains supply: 3N~400 V, PE
Operating frequency: 50 Hz
Mains supply for
external loads:
24 V / 350 mA
Dimensions W x H x D
with mains switch:
155 x 386 x 90 mm
155 x 386 x 117 mm
UBS modules: 1
Relay contacts: 2 (1 used to inform charger door is in operation)
Automatic control for: Digital limit switch DES
Mechanical limit switch NES

go-e Wall-Mounted EV Charger 2

Max. charging power: 11kW
Connection cable length: 1.8m
Dimensions W x H x D: 155 x 260 x 110 mm
Protection class: IP65
Installation loaction: Indoor and outdoor

Connection kit 3

Mains supply: CEE 3N~400 V (5-pole.)
Pluggable mains supply cable length: 0.7m
ELEKTROMATEN SI SG50F
NHK KNH
SG50_DES
ELEKTROMATEN SI SG50F

SI 3,5.160

Output Torque:

35 Nm

Output Speed:

160 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG63F
NHK
SG63-115_DES
ELEKTROMATEN SI FI SG63F

SI63 3,5.350 FI

Output Torque:

35 Nm

Output Speed:

350 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG63F
NHK
SG63-115_DES
ELEKTROMATEN SI FI SG63F

SI63 3,5V.350 FI

Output Torque:

35 Nm

Output Speed:

350 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
Image not available
NHK
SG50_NES
ELEKTROMATEN SI SG50F

SI 4.80

Output Torque:

40 Nm

Output Speed:

80 rpm

Hollow Shaft (Ø):

25 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
Image not available
NHK
SG50_NES
ELEKTROMATEN SI SG50F

SI 4.120

Output Torque:

40 Nm

Output Speed:

120 rpm

Hollow Shaft (Ø):

25 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SI SG50F
NHK KNH
SG50_DES
ELEKTROMATEN SI FI SG50F

SI 4.250 FI

Output Torque:

40 Nm

Output Speed:

250 rpm

Hollow Shaft (Ø):

25 / 25.4 / 30 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
Image not available
KNH
SG50_DES
ELEKTROMATEN SI SG50F

SI 4,5.80

Output Torque:

45 Nm

Output Speed:

80 rpm

Hollow Shaft (Ø):

25 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE KG50
SK
ELEKTROMATEN SE KG50

SE 5.20

Output Torque:

50 Nm

Output Speed:

20 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE KG50
SK
ELEKTROMATEN SE KG50

SE 5.24WS

Output Torque:

50 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

1 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG63F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI FI SG63F

SI63 5.250 FI

Output Torque:

50 Nm

Output Speed:

250 rpm

Hollow Shaft (Ø):

25 / 30 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE KG50
SK
ELEKTROMATEN SE KG50

SE 6.24

Output Torque:

60 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES
Image not available
NHK
SG50_DES
ELEKTROMATEN SI SG50F

SI 6.60

Output Torque:

60 Nm

Output Speed:

60 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50E
ER SK
SG50_DES
ELEKTROMATEN SE DU SG50E

SE 6.65 DU

Output Torque:

60 Nm

Output Speed:

65 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Declutching Gearbox ER Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50
SK ER
SG50_DES
ELEKTROMATEN SE FI SG50

SE 6.80 FI

Output Torque:

60 Nm

Output Speed:

80 rpm

Output Shaft (Ø) / Hollow Shaft (Ø):

25.4 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Rapid Hand Chain Operator SK Declutching Gearbox ER

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG50F
NHK
SG50_NES SG50_DES
ELEKTROMATEN SI SG50F

SI 6.80

Output Torque:

60 Nm

Output Speed:

80 rpm

Hollow Shaft (Ø):

25 / 25.4 / 30 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG50F
NHK KNH
SG50_DES SG50_NES
ELEKTROMATEN SI SG50F

SI 6.115

Output Torque:

60 Nm

Output Speed:

115 rpm

Hollow Shaft (Ø):

25 / 25.4 / 30 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
ELEKTROMATEN SI SG50F
NHK KNH
SG50_DES
ELEKTROMATEN SI FI SG50F

SI 6.160 FI

Output Torque:

60 Nm

Output Speed:

160 rpm

Hollow Shaft (Ø):

25 / 30 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50
SK
SG50_DES SG50_NES
ELEKTROMATEN SE SG50

SE 7.32WS

Output Torque:

70 Nm

Output Speed:

32 rpm

Output Shaft (Ø):

25.4 mm

Mains Supply:

1 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
Image not available
NHK
SG63-115_DES
ELEKTROMATEN SI SG63F

SI63 8.120

Output Torque:

80 Nm

Output Speed:

120 rpm

Hollow Shaft (Ø):

25 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG63F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI FI SG63F

SI63 8.180 FI

Output Torque:

80 Nm

Output Speed:

180 rpm

Hollow Shaft (Ø):

25 / 30 / 31.75 / 35 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
Image not available
NHK
SG63-115_DES
ELEKTROMATEN SI SG63F

SI 8V.180

Output Torque:

80 Nm

Output Speed:

180 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 8.300 FI

Output Torque:

80 Nm

Output Speed:

300 rpm

Hollow Shaft (Ø):

30 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50
SK
SG50_DES
ELEKTROMATEN SE SG50

SE 9.20WS

Output Torque:

90 Nm

Output Speed:

20 rpm

Hollow Shaft (Ø):

25.4 / 31.75 mm

Mains Supply:

1 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50
SK
SG50_DES
ELEKTROMATEN SE SG50

SE 9.20

Output Torque:

90 Nm

Output Speed:

20 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50
SK NHK ER
SG50_DES SG50_NES
ELEKTROMATEN SE SG50

SE 9.24WS

Output Torque:

90 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø) / Output Shaft (Ø):

25.4 mm

Mains Supply:

1 phase

Manual Operation Options:

Rapid Hand Chain Operator SK Emergency Hand Crank NHK Declutching Gearbox ER

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
ELEKTROMATEN SE SG50
NHK
ATEX_NES
ELEKTROMATEN SE SG50

SE 9.24 Ex-e T3 NES

Output Torque:

90 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SE SG50
NHK
ATEX_NES
ELEKTROMATEN SE SG50

SE 9.24 Ex-de T4 NES

Output Torque:

90 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SE SG50
NHK
ATEX_NES
ELEKTROMATEN SE SG50

SE 9.24 Ex-e T3 NES

Output Torque:

90 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SE SG50
NHK
ATEX_NES
ELEKTROMATEN SE SG50

SE 9.24 Ex-de T4 NES

Output Torque:

90 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SE SG50
NHK SK ER
SG50_NES SG50_DES
ELEKTROMATEN SE SG50

SE 9.24

Output Torque:

90 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Rapid Hand Chain Operator SK Declutching Gearbox ER

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SE SG50
SK
SG50_NES
ELEKTROMATEN SE SG50

SE 9.24 IP65I

Output Torque:

90 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SE SG50
SK NHK
SG50_NES SG50_DES
ELEKTROMATEN SE SG50

SE 9.32

Output Torque:

90 Nm

Output Speed:

32 rpm

Output Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SE SG50
SK NHK
SG50_DES
ELEKTROMATEN SE FI SG50

SE 9.80 FI

Output Torque:

90 Nm

Output Speed:

80 rpm

Output Shaft (Ø) / Hollow Shaft (Ø):

25.4 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Rapid Hand Chain Operator SK Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
Image not available
NHK
SG63-115_DES
ELEKTROMATEN SI SG63F

SI63 9.90

Output Torque:

90 Nm

Output Speed:

90 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG63F
SK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG63F

SI 10.15

Output Torque:

100 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 10.70

Output Torque:

100 Nm

Output Speed:

70 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG63
KNH NHK
SG63-115_DES
ELEKTROMATEN SE FI SG63

SE63 10V.100 FI

Output Torque:

100 Nm

Output Speed:

100 rpm

Output Shaft (Ø):

25.4 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
Image not available
NHK KNH
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 10.140

Output Torque:

100 Nm

Output Speed:

140 rpm

Hollow Shaft (Ø):

30 / 40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 10.200 FI

Output Torque:

100 Nm

Output Speed:

200 rpm

Hollow Shaft (Ø):

30 / 35 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
Image not available

ELEKTROMATEN ST SG85R

ST 12.21

Output Torque:

120 Nm

Output Speed:

21 rpm

Output Shaft (Ø):

25 mm

Mains Supply:

3 phase
Image not available
NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 12.170 FI

Output Torque:

120 Nm

Output Speed:

170 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 13.70

Output Torque:

130 Nm

Output Speed:

70 rpm

Hollow Shaft (Ø):

30 / 40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG63F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI FI SG63F

SI 13.100 FI

Output Torque:

130 Nm

Output Speed:

100 rpm

Hollow Shaft (Ø):

25 / 25.4 / 30 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50
SK
SG50_DES
ELEKTROMATEN SE SG50

SE 14.15

Output Torque:

140 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

31.75 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG50F
KNH NHK
SG50_DES
ELEKTROMATEN SI SG50F

SI 14.20

Output Torque:

140 Nm

Output Speed:

20 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50
SK ER
SG50_DES
ELEKTROMATEN SE SG50

SE 14.21WS

Output Torque:

140 Nm

Output Speed:

21 rpm

Hollow Shaft (Ø):

25.4 / 31.75 mm

Mains Supply:

1 phase

Manual Operation Options:

Rapid Hand Chain Operator SK Declutching Gearbox ER

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG50
SK ER
SG50_DES SG50_NES
ELEKTROMATEN SE SG50

SE 14.21

Output Torque:

140 Nm

Output Speed:

21 rpm

Hollow Shaft (Ø):

25.4 / 31.75 / 35 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK Declutching Gearbox ER

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
ELEKTROMATEN SE SG50
SK NHK
SG50_DES SG50_NES
ELEKTROMATEN SE SG50

SE 14.22

Output Torque:

140 Nm

Output Speed:

22 rpm

Output Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
ELEKTROMATEN SE SG50
SK NHK ER
SG50_DES
ELEKTROMATEN SE FI SG50

SE 14.80 FI

Output Torque:

140 Nm

Output Speed:

80 rpm

Output Shaft (Ø) / Hollow Shaft (Ø):

25.4 / 31.75 / 35 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Rapid Hand Chain Operator SK Emergency Hand Crank NHK Declutching Gearbox ER

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG63
KNH NHK
SG63-115_DES SG63-115_NES
ELEKTROMATEN SE SG63

SE 15.48

Output Torque:

150 Nm

Output Speed:

48 rpm

Output Shaft (Ø):

25.4 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 15.140 FI

Output Torque:

150 Nm

Output Speed:

140 rpm

Hollow Shaft (Ø):

30 / 35 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
Image not available
NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 15.250 FI

Output Torque:

150 Nm

Output Speed:

250 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG63F
SK NHK
SG63F-SIK_DES
ELEKTROMATEN SI SG63F SG63F-SIK

SIK 17.10WS

Output Torque:

170 Nm

Output Speed:

10 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

1 phase

Manual Operation Options:

Rapid Hand Chain Operator SK Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG63
KNH
SG63-115_DES
ELEKTROMATEN SE SG63

SE 17.15

Output Torque:

170 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

25.4 / 31.75 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG63F
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG63F

SI 17.15

Output Torque:

170 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

25.4 / 30 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG63F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI FI SG63F

SI 17.60 FI

Output Torque:

170 Nm

Output Speed:

60 rpm

Hollow Shaft (Ø):

25 / 30 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
Image not available
NHK
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 19.70

Output Torque:

190 Nm

Output Speed:

70 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN KE SG85
KNH
SG63-115_DES
ELEKTROMATEN KE SG85

KE 20.24

Output Torque:

200 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
Image not available

ELEKTROMATEN ST SG85R

ST 20.24

Output Torque:

200 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

40 mm

Mains Supply:

3 phase
ELEKTROMATEN KE SG85
KNH
SG63-115_DES
ELEKTROMATEN KE FI SG85

KE 20.60 FI

Output Torque:

200 Nm

Output Speed:

60 rpm

Output Shaft (Ø):

40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 20.90

Output Torque:

200 Nm

Output Speed:

90 rpm

Hollow Shaft (Ø):

30 / 31.75 / 40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 20.100 FI

Output Torque:

200 Nm

Output Speed:

100 rpm

Hollow Shaft (Ø):

30 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SE SG63
KNH NHK
SG63-115_DES SG63-115_NES
ELEKTROMATEN SE SG63

SE 22.24

Output Torque:

220 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
ELEKTROMATEN SI SG63F
SK NHK
SG63F-SIK_NES SG63F-SIK_DES
ELEKTROMATEN SI SG63F SG63F-SIK

SIK 25.10WS

Output Torque:

250 Nm

Output Speed:

10 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

1 phase

Manual Operation Options:

Rapid Hand Chain Operator SK Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG63F
SK
SG63F-SIK_DES
ELEKTROMATEN SI SG63F SG63F-SIK

SIK 25.10

Output Torque:

250 Nm

Output Speed:

10 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Rapid Hand Chain Operator SK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 25.15WS

Output Torque:

250 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

1 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES SG63-115_NES
ELEKTROMATEN SI SG85F

SI 25.15

Output Torque:

250 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 25HC.15

Output Torque:

250 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK
ATEX_NES
ELEKTROMATEN SI SG85F

SI 25.15 Ex-e T3 NES

Output Torque:

250 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SI SG85F
NHK
ATEX_NES
ELEKTROMATEN SI SG85F

SI 25.15 Ex-de T4 NES

Output Torque:

250 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

30 / 40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SI SG63F
KNH NHK
SG63-115_DES SG63-115_NES
ELEKTROMATEN SI SG63F

SI63 25.15

Output Torque:

250 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

30 / 31.75 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
Image not available
KNH
SG63-115_DES
ELEKTROMATEN SE FI SG85

SE 25.24 FI

Output Torque:

250 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

31.75 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 25.24

Output Torque:

250 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
Image not available
NHK
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 25.46

Output Torque:

250 Nm

Output Speed:

46 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
Image not available
KNH
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 25HC.46

Output Torque:

250 Nm

Output Speed:

46 rpm

Hollow Shaft (Ø):

30 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 25.60

Output Torque:

250 Nm

Output Speed:

60 rpm

Hollow Shaft (Ø):

30 / 40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 25.60 FI

Output Torque:

250 Nm

Output Speed:

60 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 25.80 FI

Output Torque:

250 Nm

Output Speed:

80 rpm

Hollow Shaft (Ø):

30 / 40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 25V.80 FI

Output Torque:

250 Nm

Output Speed:

80 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 25.150 FI

Output Torque:

250 Nm

Output Speed:

150 rpm

Hollow Shaft (Ø):

35 / 40 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN KE SG85
KNH NHK
SG63-115_DES
ELEKTROMATEN KE SG85

KE 30.24

Output Torque:

300 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
Image not available
NHK KNH
SG63-115_NES
ELEKTROMATEN SI SG85F

SI 30.46

Output Torque:

300 Nm

Output Speed:

46 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 35.15

Output Torque:

350 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN KE SG85
NHK
ATEX_NES
ELEKTROMATEN KE SG85

KE 35.24 Ex-de T4 NES

Output Torque:

350 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SI SG85F
NHK
SG63-115_NES
ELEKTROMATEN SI SG85F

SI 35.30

Output Torque:

350 Nm

Output Speed:

30 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
Image not available
NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 35.60

Output Torque:

350 Nm

Output Speed:

60 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK KNH
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 35.100 FI

Output Torque:

350 Nm

Output Speed:

100 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Emergency Hand Crank NHK Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 40.10

Output Torque:

400 Nm

Output Speed:

10 rpm

Hollow Shaft (Ø):

35 / 40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK
ATEX_NES
ELEKTROMATEN SI SG85F

SI 40.15 Ex-e T3 NES

Output Torque:

400 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SI SG85F
NHK
ATEX_NES
ELEKTROMATEN SI SG85F

SI 40.15 Ex-de T4 NES

Output Torque:

400 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN SI SG85F
KNH
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 40HCV.15

Output Torque:

400 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
NHK
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 40.15

Output Torque:

400 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

35 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN KE SG85
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN KE SG85

KE 40.24

Output Torque:

400 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 40.24

Output Torque:

400 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN FG

ELEKTROMATEN FG

FG 40 Ex

Max. Output Torque:

400 Nm

Max. Output Speed:

24 rpm

Hollow Shaft (Ø):

30 mm

ELEKTROMATEN KE SG85
KNH
SG63-115_DES
ELEKTROMATEN KE FI SG85

KE 40.40 FI

Output Torque:

400 Nm

Output Speed:

40 rpm

Output Shaft (Ø):

40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 40.40 FI

Output Torque:

400 Nm

Output Speed:

40 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 45.7WS

Output Torque:

450 Nm

Output Speed:

7 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

1 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 45.15

Output Torque:

450 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 45.60 FI

Output Torque:

450 Nm

Output Speed:

60 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN KE SG115
KNH
SG63-115_DES
ELEKTROMATEN KE FI SG115

KE 50.80 FI

Output Torque:

500 Nm

Output Speed:

80 rpm

Output Shaft (Ø):

55 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_DES
ELEKTROMATEN SI FI SG115F

SI 50.80 FI

Output Torque:

500 Nm

Output Speed:

80 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 55.15

Output Torque:

550 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH
SG63-115_DES
ELEKTROMATEN SI SG85F

SI 55HCV.15

Output Torque:

550 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 55.20 FI

Output Torque:

550 Nm

Output Speed:

20 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI FI SG85F

SI 55.40 FI

Output Torque:

550 Nm

Output Speed:

40 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN KE SG115
KNH
SG63-115_NES SG63-115_DES
ELEKTROMATEN KE SG115

KE 60.24

Output Torque:

600 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG115F

SI 60.24

Output Torque:

600 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
Image not available
NHK
SG63-115_DES
ELEKTROMATEN SI SG115F

SI 60.46

Output Torque:

600 Nm

Output Speed:

46 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG85F
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG85F

SI 65.15

Output Torque:

650 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

40 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_DES
ELEKTROMATEN SI SG115F

SI 75.15

Output Torque:

750 Nm

Output Speed:

15 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI FI SG115F

SI 75.20 FI

Output Torque:

750 Nm

Output Speed:

20 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

1N~230 V, PE 3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_DES
ELEKTROMATEN SI SG115F

SI 75.24

Output Torque:

750 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_DES
ELEKTROMATEN SI FI SG115F

SI 75.45 FI

Output Torque:

750 Nm

Output Speed:

45 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
NHK
ATEX_NES
ELEKTROMATEN SI SG115F

SI 80.12 Ex-de T4 NES

Output Torque:

800 Nm

Output Speed:

12 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN KE SG115
NHK
ATEX_NES
ELEKTROMATEN KE SG115

KE 80.12 Ex-de T4 NES

Output Torque:

800 Nm

Output Speed:

12 rpm

Output Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES
ELEKTROMATEN KE SG115
KNH
SG63-115_DES
ELEKTROMATEN KE SG115

KE 80.24

Output Torque:

800 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN FG

ELEKTROMATEN FG

FG 80 Ex

Max. Output Torque:

800 Nm

Max. Output Speed:

24 rpm

Hollow Shaft (Ø):

40 mm

ELEKTROMATEN FG

ELEKTROMATEN FG

FG 80

Max. Output Torque:

800 Nm

Max. Output Speed:

24 rpm

Hollow Shaft (Ø):

40 mm

ELEKTROMATEN KE SG115
KNH
SG63-115_DES
ELEKTROMATEN KE FI SG115

KE 80.40 FI

Output Torque:

800 Nm

Output Speed:

40 rpm

Output Shaft (Ø):

55 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG115F

SI 85.10

Output Torque:

850 Nm

Output Speed:

10 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH NHK
SG63-115_DES SG63-115_NES
ELEKTROMATEN SI SG115F

SI 100.10

Output Torque:

1000 Nm

Output Speed:

10 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES
ELEKTROMATEN SI SG115F
KNH
SG63-115_DES
ELEKTROMATEN SI SG115F

SI 100.24

Output Torque:

1000 Nm

Output Speed:

24 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_DES
ELEKTROMATEN SI FI SG115F

SI 100.30 FI

Output Torque:

1000 Nm

Output Speed:

30 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
Image not available
KNH
SG63-115_DES
ELEKTROMATEN SI SG115F

SI 120HC.12

Output Torque:

1200 Nm

Output Speed:

12 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN KE SG115
KNH
SG63-115_DES
ELEKTROMATEN KE SG115

KE 120.24

Output Torque:

1200 Nm

Output Speed:

24 rpm

Output Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN FG

ELEKTROMATEN FG

FG 120 Ex

Max. Output Torque:

1200 Nm

Max. Output Speed:

24 rpm

Hollow Shaft (Ø):

50 mm

ELEKTROMATEN FG

ELEKTROMATEN FG

FG 120

Max. Output Torque:

1200 Nm

Max. Output Speed:

24 rpm

Hollow Shaft (Ø):

50 mm

ELEKTROMATEN KE SG115
KNH
SG63-115_DES
ELEKTROMATEN KE FI SG115

KE 120.30 FI

Output Torque:

1200 Nm

Output Speed:

30 rpm

Output Shaft (Ø):

55 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH NHK
SG63-115_NES SG63-115_DES
ELEKTROMATEN SI SG115F

SI 140.7

Output Torque:

1400 Nm

Output Speed:

7 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Mechanical limit switch NES Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_DES
ELEKTROMATEN SI FI SG115F

SI 140.20 FI

Output Torque:

1400 Nm

Output Speed:

20 rpm

Hollow Shaft (Ø):

55 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH NHK
SG63-115_DES
ELEKTROMATEN SI SG115F

SI 180.6

Output Torque:

1800 Nm

Output Speed:

6 rpm

Hollow Shaft (Ø):

60 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH Emergency Hand Crank NHK

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG115F
KNH
SG63-115_DES
ELEKTROMATEN SI FI SG115F

SI 180.12 FI

Output Torque:

1800 Nm

Output Speed:

12 rpm

Hollow Shaft (Ø):

60 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG186F
KNH
SG63-115_DES
ELEKTROMATEN SI SG186F

SI 260.5

Output Torque:

2600 Nm

Output Speed:

5 rpm

Hollow Shaft (Ø):

80 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG186F
KNH
SG63-115_DES
ELEKTROMATEN SI FI SG186F

SI 260.12 FI

Output Torque:

2600 Nm

Output Speed:

12 rpm

Hollow Shaft (Ø):

80 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG186F
KNH
SG63-115_DES
ELEKTROMATEN SI SG186F

SI 360.5

Output Torque:

3600 Nm

Output Speed:

5 rpm

Hollow Shaft (Ø):

80 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG186F
KNH
SG63-115_DES
ELEKTROMATEN SI SG186F

SI 360.9

Output Torque:

3600 Nm

Output Speed:

9 rpm

Hollow Shaft (Ø):

100 / 80 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG186F
KNH
SG63-115_DES
ELEKTROMATEN SI FI SG186F

SI 360.12 FI

Output Torque:

3600 Nm

Output Speed:

12 rpm

Hollow Shaft (Ø):

80 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN FG

ELEKTROMATEN FG

FG 360

Max. Output Torque:

3600 Nm

Max. Output Speed:

15 rpm

Hollow Shaft (Ø):

80 mm

ELEKTROMATEN SI SG186F
KNH
SG63-115_DES
ELEKTROMATEN SI SG186F

SI 480.9

Output Torque:

4800 Nm

Output Speed:

9 rpm

Hollow Shaft (Ø):

100 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG186F
KNH
SG63-115_DES
ELEKTROMATEN SI SG186F

SI 500.5

Output Torque:

5000 Nm

Output Speed:

5 rpm

Hollow Shaft (Ø):

100 mm

Mains Supply:

3 phase

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
ELEKTROMATEN SI SG186F
KNH
SG63-115_DES
ELEKTROMATEN SI FI SG186F

SI 500.10 FI

Output Torque:

5000 Nm

Output Speed:

10 rpm

Hollow Shaft (Ø):

100 mm

Mains Supply:

3N~400 V, PE

Manual Operation Options:

Hand Chain Operator KNH

Limit Switch Options:

Digital limit switch DES
Tube motors Garog

Tube motors Garog

Garog

  • Range of torques from 50Nm to 300Nm
  • Compact motor head design
  • Positive Mechanical Limits
  • Integrated Manual Over-ride
  • Wide range of tube adaption available
Mechanical accessories Brackets

Mechanical accessories Brackets

Up to 5 kN

For series:

SG63F / SG63F-SIKSG85 (up to SI 55.15)

Max. load:

5 kN

Part no.:

40006488

Mechanical accessories Brackets

Mechanical accessories Brackets

Up to 12 kN

For series:

SG85F (from SI 55.15)SG115F (up to SI 140.7)

Max. load:

12 kN

Part no.:

40012396

Mechanical accessories Brackets

Mechanical accessories Brackets

Up to 29 kN

For series:

SG115F (from SI 180.6)SG186F

Max. load:

29 kN

Part no.:

40016189

Mechanical accessories Torque mounts

Mechanical accessories Torque mounts

Torque bracket A SG40

Typ A

For series:

SG40

Part no.:

30005807

Mechanical accessories Torque mounts

Mechanical accessories Torque mounts

Torque bracket B SG40

Typ B

For series:

SG40

Part no.:

30005808

Mechanical accessories Torque mounts

Mechanical accessories Torque mounts

Torque bracket SG50

For series:

SG50 / SG50F / SG50E

Part no.:

30002636

Mechanical accessories Torque mounts

Mechanical accessories Torque mounts

Torque mount for series SG63F

For series:

SG63F

Output-shaft (Ø):

25 mm 30 mm

In combination with:

Bracket up to 5 kN

Part no.:

30002930

Mechanical accessories Torque mounts

Mechanical accessories Torque mounts

Torque mount for series SG85F

For series:

SG85F

Output-shaft (Ø):

30 mm 40 mm

In combination with:

Bracket up to 5 kN Bracket uo to 12 kN

Part no.:

30002930

Mechanical accessories Torque mounts

Mechanical accessories Torque mounts

Torque mount for series SG115F

For series:

SG115F

Output-shaft (Ø):

55 mm 60 mm

In combination with:

Bracket up to 12 kN

Part no.:

30003162

Mechanical accessories Brackets KE

Mechanical accessories Brackets KE

For KE in use with series SG50

For series:

SG50

Part no.:

30005056

Mechanical accessories Brackets KE

Mechanical accessories Brackets KE

For KE in use with series SG85

For series:

SG85

Part no.:

30005055

Mechanical accessories Brackets KE

Mechanical accessories Brackets KE

For KE in use with series SG115

For series:

SG115

Part no.:

30005100

Mechanical accessories Cable drums

Mechanical accessories Cable drums

Cable drums for shafts

Type B

Ø 160 mm for shafts (Ø):

25.00 mm - 40.00 mm

Please note for the UK market:

Price subject to availability

Mechanical accessories Shafts

Mechanical accessories Shafts

Keyed shafts for drive units

Item No. Part Description
30005430 00002 GH30/5 Shaft 30mm Keyed Type 5
30005430 00004 GH40/5 Shaft 40mm Keyed Type 5
30005430 00008 GH55/5 Shaft 55mm Keyed Type 5
30005035 GH60/5 Shaft 60mm Keyed Type 5
30005905 GH80/5 Shaft 80mm Keyed Type 5
30005173 GH100/5 Shaft Keyed 100mm x
980mm
Mechanical accessories Shafts

Mechanical accessories Shafts

Safety brake shafts

Item No. Part Description
40018587 00001 GB0/X/36 S/Brake Shaft 18mm
sq/25mm dia
40018588 00001 GH1/2 S/Brake Shaft
30mm/35mm dia
40018589 00001 GH2/3 S/Brake Shaft
40mm/45mm dia
30005430 00001 GH30 Shaft 30mm for
GB40 & RSB1
30005430 00003 GH40 Shaft 40mm - GB80
S/Brake
30005430 00007 GH50 Shaft 50mm - GB120
S/Brake
40018591 00001 GH6 S/Brake Shaft
80mm/85mm dia
30003005 GH60/2 Shaft 60mm Keyed
Type 2
30003184 GH80/2 Shaft 80mm Keyed
Type 2
Mechanical accessories Shafts

Mechanical accessories Shafts

Plain shafts

Item No. Part Description
40017930 00001 GH30/4 Shaft 30mm Plain Type 4
40017930 00002 GH40/4 Shaft 40mm Plain Type 4
40017930 00003 GH50/4 Shaft 50mm Plain Type 4
40017930 00004 GH55/4 Shaft 55mm Plain Type 4
40017930 00005 GH60/4 Shaft 60mm Plain Type 4
40012664 GH80/4 Shaft 80mm Plain Type 4
40017002 GH100/4 Shaft Plain 100mmx
1000mm
Mechanical accessories Bearings

Mechanical accessories Bearings

2 Hole Flange Bearings

Item No. No.2 Description
40019121 00001 B/UCFL205 Bearing 25mm
2 Hole Flange Mnt
40017940 00001 B/UCFL206 Bearing 30mm
2 Hole Flange Mnt
40017941 00001 B/UCFL208 Bearing 40mm
2 Hole Flange Mnt
Mechanical accessories Bearings

Mechanical accessories Bearings

4 Hole Flange Bearings

Item No. Part Description
40017935 00001 B/UCF206 Bearing 30mm
4 Hole Flange Mnt
40017936 00001 B/UCF208 Bearing 40mm
4 Hole Flange Mnt
40017937 00001 B/UCF211 Bearing 55mm
4 Hole Flange Mnt
40017939 00001 B/UCF212 Bearing 60mm
4 Hole Flange Mnt
Safety Sensors GfA

Safety Sensors GfA

Wireless optical safety Edge kit for TS 981

Part number: Part: Profile Length:
14401637 00001 KSR6P 6 meters
14401638 00001 KSR6P/10 10 meters

Only compatible with a TS 981

Safety Sensors GfA

Safety Sensors GfA

Wireless optical safety Edge kit for TS 971

Part number: Part: Profile Length:
14401635 00001 KSR6 6 meters
14401636 00001 KSR6/10 10 meters

Only compatible with a TS 971

Safety Sensors GfA

Safety Sensors GfA

Gelbau safety edge

Part number: Part: Profile:
18051155 GF1851155 Profile 003
18051348 GF1851348 Profile 006

Ordered to length





Safety Sensors GfA

Safety Sensors GfA

Splash cover

Part number: Part:
40017478 00001 GF417478

Only compatible with the KSR6 and KSR4P





Safety Sensors Photocells

Safety Sensors Photocells

PES/30T Thru-beam trx & receiver

Part number: Part:
40018787 00001 PES/30T
Safety Sensors Photocells

Safety Sensors Photocells

PES/9R Polarised reflex photocell

Part number: Part:
40018788 00001 PES/9R
Safety Sensors Accessories Optical Safety Edge System

Safety Sensors Accessories Optical Safety Edge System

Roller shutter Safety Edge Profile 22mm bore

Part number: Part: Bore:
40018564 00001 GF10040 22mm

Only compatible up to 10m





Safety Sensors Accessories Optical Safety Edge System

Safety Sensors Accessories Optical Safety Edge System

Roller Shutter Safety Edge Profile

Part number: Part: Bore:
40018565 00001 GF10045 11mm

Only compatible up to 6m





Safety Sensors Accessories Optical Safety Edge System

Safety Sensors Accessories Optical Safety Edge System

Sectional Overhead Safety Edge Profile

Part number: Part: Bore:
40018567 00001 GF10085 11mm

Only compatible on doors up to 6m wide





Safety Sensors Accessories Optical Safety Edge System

Safety Sensors Accessories Optical Safety Edge System

Mounting Rail GF40594

Part number: Part:
40018577 00001 GF40594

Compatible with Optical and pneumatic profile





Safety Sensors Accessories Resistive Safety Edge System

Safety Sensors Accessories Resistive Safety Edge System

Gelbau safety edge Profile

Part number: Part:
18051348 GF1851348

Compatible up to 15m

Safety Sensors Accessories Resistive Safety Edge System

Safety Sensors Accessories Resistive Safety Edge System

Gelbau Safety Edge Mounting Rail

Part number: Part:
40014216 GF414216
Spare parts Drive units

Spare parts Drive units

Series KG50

Gearbox-series:

KG50

Spare parts Drive units

Spare parts Drive units

Series SG50

Gearbox-series:

SG50

Spare parts Drive units

Spare parts Drive units

Series SG63F-SIK

Gearbox-series:

SG63F-SIK

Spare parts Drive units

Spare parts Drive units

Series SG63

Gearbox-series:

SG63

Spare parts Drive units

Spare parts Drive units

Series SG85

Gearbox-series:

SG85

Spare parts Drive units

Spare parts Drive units

Series SG115

Gearbox-series:

SG115

Spare parts Door controls

Spare parts Door controls

Service case

The GfA service case allows the efficient and cost-effective fault analysis on site.



Designation Designation
1. Case
2. GfA-Stick
3. Voltcraft digital
    multimeter
4. Door control TS 971
5. WSD door module
6. Spiral cable w.
    junction box
7. Digital limit switch
    DES 4
8. Universal OSE set 0.5 m
9. OSE tester
10. Rubber profile OSE 0.2 m
11. Connection cable 6.5 m
      for OSE
12. Rectifier EGR II
13. Resistor 8k2
14. Installation instructions
15. Additional documents
      for structured fault
      diagnostics



Designation Description Part no.
Service case Documentation -de-en-fr-
Documentation -fr-es-it-
Documentation -ru-pl-cs-
20004007.00001
20004007.00002
20004007.00003



Spare parts Door controls

Spare parts Door controls

Housing TS-A

Door controls:

TS 956 / TS 958 / TS 961 /TS 970 / TS 981

Housing:

TS-A

Year:

2006 - 2012from 2006 (TS 981)

Spare parts Door controls

Spare parts Door controls

Housing TS-B

Door controls:

TS 959 / TS 970 / TS 971

Housing:

TS-B

Year:

from 2012

Mechanical accessories Bearings

Mechanical accessories Bearings

Pedestal Bearings

Item No. Part Description
40017942 00001 B/UCP206 Bearing 30mm
Pedestal (SLB)
40000440 B/UCP210 Bearing 50mm
Pedestal
40017943 00001 B/UCP212 Bearing 60mm
Pedestal
40017944 00001 B/UCP216 Bearing 80mm
Pedestal
40001531 B/UCP220 Bearing 100mm
pedestal
Mechanical accessories Discs

Mechanical accessories Discs

Discs for 4" Tube

Item No. Part Item Description
40017920 00034 GD93X01 Disc 93mm
o/d x 1.0" Bore
40017920 00035 GD93X30 Disc 93mm
o/d x 30mm Bore
40017920 00036 GD93X35 Disc 93mm
o/d x 35mm Bore
40017920 00037 GD93X40 Disc 93mm
o/d x 40mm Bore
40017920 00048 GD93X45 Disc 93mm
o/d x 45mm Bore
40017920 00038 GD94X01 Disc 94mm
o/d x 1.0" Bore
40017920 00039 GD94X35 Disc 94mm
o/d x 35mm Bore
40017920 00041 GD98X01 Disc 97.5mm
o/d x 1.0" Bore
40017920 00042 GD98X30 Disc 97.5mm
o/d x 30mm Bore
40017920 00043 GD98X35 Disc 97.5mm
o/d x 35mm Bore
Mechanical accessories Discs

Mechanical accessories Discs

Discs for 5" Tube

Item No. Part Item Description
40017920 00044 GD120X01 Disc 120mm
o/d x 1.0" Bore
40017920 00001 GD120X30 Disc 120mm
o/d x 30mm Bore
40017920 00002 GD120X35 Disc 120mm
o/d x 35mm Bore
40017920 00003 GD120X40 Disc 120mm
o/d x 40mm Bore
40017920 00004 GD120X45 Disc 120mm
o/d x 45mm Bore
Mechanical accessories Discs

Mechanical accessories Discs

Discs for 5.5" Tube

Item No. Part Item Description
40017920 00005 GD127X35 Disc 127.5mm
o/d x 35mm Bore
40017920 00006 GD127X40 Disc 127.5mm
o/d x 40mm Bore
40017920 00007 GD129X30 Disc 128.5mm
o/d x 30mm Bore
40017920 00008 GD129X35 Disc 128.5mm
o/d x 35mm Bore
40017920 00009 GD129X40 Disc 128.5mm
o/d x 40mm Bore
40017920 00010 GD129X45 Disc 128.5mm
o/d x 45mm Bore
40017920 00011 GD129X55 Disc 128.5mm
o/d x 55mm Bore
40017920 00012 GD133X30 Disc 133mm
o/d x 30mm Bore
40017920 00013 GD133X35 Disc 133mm
o/d x 35mm Bore
40017920 00014 GD133X40 Disc 133mm
o/d x 40mm Bore
40017920 00047 GD133X45 Disc 133mm
o/d x 45mm Bore
40017920 00015 GD133X55 Disc 133mm
o/d x 55mm Bore
Mechanical accessories Discs

Mechanical accessories Discs

Discs for 6 5/8" Tube

Item No. Part Item Description
40017920 00016 GD155X40 Disc 155mm
o/d x 40mm Bore
40017920 00051 GD155X45 Disc 155mm
o/d x 45mm Bore
40017920 00017 GD155X55 Disc 155mm
o/d x 55mm Bore
40017920 00018 GD158X30 Disc 158mm
o/d x 30mm Bore
40017920 00019 GD158X35 Disc 158mm
o/d x 35mm Bore
40017920 00020 GD158X40 Disc 158mm
o/d x 40mm Bore
40017920 00021 GD158X45 Disc 158mm
o/d x 45mm Bore
40017920 00022 GD158X55 Disc 158mm
o/d x 55mm Bore
40017920 00045 GD161X30 Disc 161mm
o/d x 30mm Bore
40017920 00052 GD161X35 Disc 161mm
o/d x 35mm bore
40017920 00049 GD161X40 Disc 161mm
o/d x 40mm Bore
40017920 00050 GD161X45 Disc 161mm
o/d x 45mm Bore
40017920 00054 GD161X55 Disc 161mm
o/d x 55mm Bore
Mechanical accessories Discs

Mechanical accessories Discs

Discs for 7 5/8" Tube

Item No. Part Item Description
40017920 00023 GD180X40 Disc 180mm
o/d x 40mm Bore
40017920 00057 GD180X45 Disc 180mm
o/d x 45mm Bore
40017920 00058 GD180X50 Disc 180mm
o/d x 50mm Bore
40017920 00024 GD180X55 Disc 180mm
o/d x 55mm Bore
40017920 00064 GD180X60 Disc 180mm
o/d x 60mm Bore
Mechanical accessories Discs

Mechanical accessories Discs

Discs for 8 5/8" Tube

Item No. Part Item Description
40017920 00053 GD203X55 Disc 203mm
o/d x 55mm Bore
40017920 00026 GD203X60 Disc 203mm
o/d x 60mm Bore
40017920 00027 GD206X30 Disc 206mm
o/d x 30mm Bore
40017920 00028 GD206X40 Disc 206mm
o/d x 40mm Bore
40017920 00029 GD206X50 Disc 206mm
o/d x 50mm Bore
40017920 00030 GD206X55 Disc 206mm
o/d x 55mm Bore
40017920 00031 GD206X60 Disc 206mm
o/d x 60mm Bore
40017920 00065 GD199X50 Disc 199mm
o/d x 50mm Bore
40017920 00066 GD199X55 Disc 199mm
o/d x 55mm Bore
40017920 00067 GD199X60 Disc 199mm
o/d x 60mm Bore
Mechanical accessories Discs

Mechanical accessories Discs

Discs for 10 3/4" Tube

Item No. Part Item Description
40017920 00032 GD257X55 Disc 257mm
o/d x 55mm Bore
40017920 00059 GD259X50 Disc 259mm
o/d x 50mm Bore
40017920 00055 GD259X55 Disc 259mm
o/d x 55mm Bore
40017920 00033 GD259X60 Disc 259mm
o/d x 60mm Bore
Mechanical accessories Further products

Mechanical accessories Further products

Roller chains

Pitch (p x b)

Ultimate loadof chain [N]

08 B-1 (1/2" x 5/16")10 B-1 (5/8" x 3/8")12 B-1 (3/4" x 7/16")16 B-1 (1" x 17.02mm)20 B-1 (1 1/4" x 3/4")

18.00022.40029.00060.00095.000

Mechanical accessories Further products

Mechanical accessories Further products

Sprockets

Pitch (p x b) Teeth   Bore-Ø       Pitch
   circle-Ø
08 B-1 (1/2"x5/16")
08 B-1 (1/2"x5/16")
08 B-1 (1/2"x5/16")
10 B-1 (5/8"x3/8")
10 B-1 (5/8"x3/8")
12 B-1 (3/4"x7/16")
12 B-1 (3/4"x7/16")
12 B-1 (3/4"x7/16")
16 B-1 (1"x17.02mm)
16 B-1 (1"x17.02mm)
16 B-1 (1"x17.02mm)
20 B-1 (1 1/4"x 3/4")
20 B-1 (1 1/4"x 3/4")
15
19
30
12
18
12
15
19
15
19
21
12
15
1"
25-30mm
1"
1"
1"
1"-30mm
30-40mm
30mm
40-55mm
40mm
55mm
55mm
55mm
61.09mm
77.16mm
121.5mm
61.34mm
91.42mm
73.6mm
91.63mm
115.75mm
122.17mm
192.91mm
213.04mm
122.68mm
152.72mm
Mechanical accessories Further products

Mechanical accessories Further products

Plate wheels

Pitch (p x b) Teeth   Bore-Ø       Pitch
   circle-Ø
08 B-1 (1/2"x5/16")
08 B-1 (1/2"x5/16")
10 B-1 (5/8"x3/8")
12 B-1 (3/4"x7/16")
12 B-1 (3/4"x7/16")
16 B-1 (1"x17.02mm)
16 B-1 (1"x17.02mm)
16 B-1 (1"x17.02mm)
20 B-1 (1 1/4"x3/4")
50
57
57
57
76
45
57
76
57
30mm /
30mm /
30-40mm /
40-50mm /
40-60mm /
60mm /
50-80mm /
60-80mm /
60-80mm /
202.26mm
230.54mm
288.18mm
345.81mm
460.99mm
364.13mm
461.07mm
614.65mm
576.36mm
Mechanical accessories Further products

Mechanical accessories Further products

Stub shafts

Stub shafts:

25 mm - 55 mm

Adapter shafts:

25.4 mm

Adapter stub shafts:

25 mm - 55 mm

Electrical accessories Control devices

Electrical accessories Control devices

JAPZ4-1R

Control device:

JAPZ4-1R

Part no.:

40018664 00001

Electrical accessories Control devices

Electrical accessories Control devices

GE3A/A

Control device:

GE3A

Part no.:

40015034

Electrical accessories Control devices

Electrical accessories Control devices

GE3AN

Control device:

GE3AN

Part no.:

40018546 00001

Electrical accessories Control devices

Electrical accessories Control devices

GE2

Control device:

GE2

Part no.:

40000288

Electrical accessories Control devices

Electrical accessories Control devices

2ch loop detector card

Control device:

CALDTS2/B

Part no.:

40017122

Electrical accessories Radio UK

Electrical accessories Radio UK

2 Channel Transmitter

Part:

VR/TF2E

Channels:

2

Part Number:

40019030 00001

Electrical accessories Radio UK

Electrical accessories Radio UK

4 Channel Transmitter

Part:

VR/TF4E

Channels:

4

Part Number:

40019031 00001

Electrical accessories Radio UK

Electrical accessories Radio UK

Vehicle Mounted Transmitter

Part Number: Part: Channels:
40019014 00001 VR/60743 1*
40019015 00001 VR/60744 2
40019015 00002 VR/61143 4

*ILLUSTRATED

Electrical accessories Radio UK

Electrical accessories Radio UK

Wireless Keypad

Part:

VR/K2E

Channels:

1

Part Number:

40019022 00001

Electrical accessories Switches

Electrical accessories Switches

Pull switch no. 23

Switch:

Pull switch no. 23

Version:

Heavy duty version forwall-mountingand ceiling mountingwith 2.5 m chain

Dimensions W x H x D:

60 x 131 x 100 mm

Part no.:

40019479

Electrical accessories Switches

Electrical accessories Switches

Slack-rope switch

Switch:

Slack-rope switch

Dimensions W x H x D:

150 x 294 x 157 mm(short pulley 88 mm)

Part no.:

30000972 (left 88 mm)30000973 (right 88 mm)

Electrical accessories Traffic-lights & Lamps

Electrical accessories Traffic-lights & Lamps

Red traffic-light

LED traffic-light: Red
Calotte Ø: 130 mm
Voltage: 230 V / 50 Hz - 60 Hz
Power 3 W (15 mA)
Socket: E27
Dimensions W x H x D: 151 x 151 x 250 mm
Part no.: 30005345
Electrical accessories Traffic-lights & Lamps

Electrical accessories Traffic-lights & Lamps

Green traffic-light

LED traffic-light: Green
Calotte Ø: 130 mm
Voltage: 230 V / 50 Hz - 60 Hz
Power: 3 W (15 mA)
Socket: E27
Dimensions W x H x D: 151 x 151 x 250 mm
Part no.: 30005346
Electrical accessories Traffic-lights & Lamps

Electrical accessories Traffic-lights & Lamps

Yellow traffic-light

LED traffic-light: Yellow
Calotte Ø: 130 mm
Voltage: 230 V / 50 Hz - 60 Hz
Power: 3 W (15 mA)
Socket: E27
Dimensions W x H x D: 151 x 151 x 250 mm
Part no.: 30005347
Electrical accessories Traffic-lights & Lamps

Electrical accessories Traffic-lights & Lamps

Red-Green traffic-light

LED traffic-light:

Red-Green

Calotte Ø:

130 mm

Voltage:

230 V / 50 Hz - 60 Hz

Power:

3 W (15 mA)

Socket:

E27

Dimensions W x H x D:

151 x 302 x 250 mm

Part no.:

30005348

Electrical accessories Traffic-lights & Lamps

Electrical accessories Traffic-lights & Lamps

24vdc Red-Green LED traffic lights

LED traffic-light:

Red - Green

Voltage:

24Vac/dc

Protection Class:

IP 65

Dimensions W x H x D:

125 x 249 x 126

Part no.:

40019130 00002

Part:

JE419130/B

Electrical accessories Traffic-lights & Lamps

Electrical accessories Traffic-lights & Lamps

Selectable voltage Red-Green LED traffic lights

LED traffic-light:

Red - Green

Lens diameter Ø:

175mm

Voltage:

24Vac/dc or 230Vac

Power:

2W

Protection Class:

IP 65

Dimensions W x H x D:

125 x 249 x 126

Part no.:

40019130 00001

Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

Falcon

Part Number: Part:
40018646 00001 IFALCON
40018647 00001 IFALCONXL
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

Condor

Part Number: Part:
40018642 00001 ICONDOR
40018643 00001 ICONDORXL
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

IXIO-D

Part Number: Part:
40018648 00001 IIXIO
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

Milan

Part Number: Part:
40018656 00001 IMILAN
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

Matrix

Part Number: Part: Channel:
40018652 00001 IMATRIXD/B 2
40018654 00001 IMATRIXS/B 1
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

LZR-i110

Part Number: Part: Colour:
40018650 00001 ILZR110-W White *
40018650 00002 ILZR110-B Black
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

LZR-i100

Part Number: Part: Colour:
40018649 00001 ILZR100-B Black*
40018649 00002 ILZR100-W White
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

LZR-h100

Part Number: Part:
40019159 00001 ILZRH100
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

LZR Widescan

Part Number: Part:
40019183 00001 ILZRWIDESCAN
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

LZR Bracket

Part Number: Part:
40019160 00001 ILZRBRACKET
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

ILZR Protection Cover

Part Number: Part:
40019210 00001 ILZR/COVER

Doesn't Include ILZR

Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

Universal Remote

Part Number: Part:
40018657 00001 IREMOTE
Electrical accessories Sensors BEA

Electrical accessories Sensors BEA

Magic switch

Part Number: Part:
40019158 00001 IMAGIC SWITCH
Electrical accessories Gearbox heaters

Electrical accessories Gearbox heaters

Gearbox heater

Gearbox heater:

with automatic temperature regulation

For use at temperatures:

below -5 °C

Max. heating capacity:

50 W

For ELEKTROMATEN from:

06.2005 onwards

Use with gearbox series SG115:

2 heaters recommended

Degree of protection:

IP65

Part no.:

20002766.00002

Safety Sensors Non Contact Safety Sensors

Safety Sensors Non Contact Safety Sensors

GF/RAY-LGxxxx/OSE

Part number: Part: Length:
14401881 01830 KGF/RAY-LG2520/OSE 1830mm
14401882 02590 KGF/RAY-LG2524/OSE 2590mm
Safety Sensors Non Contact Safety Sensors

Safety Sensors Non Contact Safety Sensors

Light curtain Opto-Elec Safety Control

Part number: Part: Supply voltage:
40018555 00001 GF10010/2B 24vAC/DC
40018555 00002 GF10010/2U 230v AC
Safety Sensors Non Contact Safety Sensors

Safety Sensors Non Contact Safety Sensors

Raytector Opto-Elec Safety Control

Part number: Part: Supply voltage:
40018555 00003 GF10023/2U 230v AC
Safety Sensors Non Contact Safety Sensors

Safety Sensors Non Contact Safety Sensors

Raytector System Door kit

Part number: Part: Compatible controllers:
30004528 GF304528 TS 959,TS 970 and TS 971
30004628 GF304628 TS 981
Image not available

Safety Sensors Non Contact Safety Sensors

Sync cable

Part number: Part: Length:
40019106 00100 GF/RAY-SYNC-10 10m
40019170 00500 GF/RAY-CON-5 5m
Safety Sensors GfA

Safety Sensors GfA

Wired Optical Safety Edge System

Part number: Part: Profile Length:
14401618 00001 KSR4P 6 meters
14401619 00001 KSR4P/10 10 meters
DLA Fire Shutter Drive DLA 150WAC

DLA Fire Shutter Drive AC DLA 150W

DLA 150WAC

Output Torque:

23 Nm

Output Speed:

24 rpm

Part number:

10004544 00002

Description:

DLA150W 1~ BIS (Actuator)

Motor power:

75 W

Limit range turns:

70

Supply voltage:

230V 1~50Hz

Motor rated current:

1.4 A

Sprocket fitted:

10T 1/2"

Protection:

IP20

Fuse link attached:

No

DLA Fire Shutter Drive DLA 150WACF

DLA Fire Shutter Drive ACF DLA 150W

DLA 150WACF

Output Torque:

23 Nm

Output Speed:

24 rpm

Part number:

10004544 00002

Description:

DLA150W 1~ BIS (Act-F/Link)

Motor power:

75 W

Limit range turns:

70

Supply voltage:

230V 1~50Hz

Motor rated current:

1.4 A

Sprocket fitted:

10T 1/2"

Protection:

IP20

Fuse link attached:

Yes

Image not available

DLA Fire Shutter Drive F DLA 150W

DLA 150WF

Output Torque:

23 Nm

Output Speed:

24 rpm

Part number:

10004544 00002

Description:

DLA150W 1~ BIS (Rem. F/Link)

Motor power:

75 W

Limit range turns:

70

Supply voltage:

230V 1~50Hz

Motor rated current:

1.4 A

Sprocket fitted:

10T 1/2"

Protection:

IP20

Fuse link attached:

Yes

Image not available

DLA Fire Shutter Drive AC DLA 250W

DLA 250WAC

Output Torque:

47 Nm

Output Speed:

24 rpm

Part number:

10004555 00003

Description:

DLA250W 1~ (24V Actuator), BOS

Motor power:

150 W

Limit range turns:

70

Supply voltage:

230V 1~50Hz

Motor rated current:

2.0 A

Sprocket fitted:

11T 1/2"

Protection:

IP20

Fuse link attached:

No

Image not available

DLA Fire Shutter Drive ACF DLA 250W

DLA 250WACF

Output Torque:

47 Nm

Output Speed:

24 rpm

Part number:

10004555 00002

Description:

DLA250W 1~ BOS (Act-F/Link)

Motor power:

150 W

Limit range turns:

70 turns

Supply voltage:

230V 1~50Hz

Motor rated current:

2.0 A

Sprocket fitted:

11T 1/2"

Protection:

IP20

Fuse link attached:

Yes

Image not available

DLA Fire Shutter Drive F DLA 250W

DLA 250WF

Output Torque:

47 Nm

Output Speed:

24 rpm

Part number:

10004559 00001

Description:

DLA250W 1~ BOS (Rem. F/Link)

Motor power:

150 W

Limit range turns:

70

Supply voltage:

230V 1~50Hz

Motor rated current:

2.0 A

Sprocket fitted:

11T 1/2"

Protection:

IP20

Fuse link attached:

Yes

Tube motors Simu

Tube motors Simu

Simu T5 and T5M

Output Torque:

50 Nm

Output Speed:

12 rpm

Motor power:

90-240W

Image not available

DLA Fire Shutter Drive AC DLA 500W

DLA 500WAC

Output Torque:

100 Nm

Output Speed:

24 rpm

Part number:

10004566 00002

Description:

DLA500W 1~ BOS (Actuator)

Motor power:

350 W

Limit range turns:

40

Supply voltage:

230V 1~50Hz

Motor rated current:

4.4 A

Sprocket fitted:

11T 1/2"

Protection:

IP20

Fuse link attached:

No

Image not available

DLA Fire Shutter Drive ACF DLA 500W

DLA 500WACF

Output Torque:

100 Nm

Output Speed:

24 rpm

Part number:

10004566 00003

Description:

DLA500W 1~ BOS (Act-F/Link)

Motor power:

350 W

Limit range turns:

40

Supply voltage:

230V 1~50Hz

Motor rated current:

4.4A

Sprocket fitted:

11T 1/2"

Protection:

IP20

Fuse link attached:

Yes

Image not available

DLA Fire Shutter Drive G DLA 500W

DLA 500WF

Output Torque:

100 Nm

Output Speed:

24 rpm

Part number:

10004568 00001

Description:

DLA500W 1~ BOS (Rem. F/Link)

Motor power:

350 W

Limit range turns:

40

Supply voltage:

230V 1~50Hz

Motor rated current:

4.4 A

Sprocket fitted:

11T 1/2"

Protection:

IP20

Fuse link attached:

Yes

DLA Fire Shutter Drive DLA 600AC

DLA Fire Shutter Drive AC DLA 600

DLA 600AC

Output Torque:

108 Nm

Output Speed:

24 rpm

Part number:

10005081 00001

Description:

DLA600 3~ (24V Actuator), BOS

Motor power:

400 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

1.0 A

Sprocket fitted:

10T 5/8"

Protection:

IP20

Fuse link attached:

No

DLA Fire Shutter Drive DLA 600ACF

DLA Fire Shutter Drive ACF DLA 600

DLA 600ACF

Output Torque:

108 Nm

Output Speed:

24 rpm

Part number:

10005081 00002

Description:

DLA600 3~ BOS (Act-F/Link)

Motor power:

400 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

1.0 A

Sprocket fitted:

10T 5/8"

Protection:

IP20

Fuse link attached:

Yes

Image not available

DLA Fire Shutter Drive F DLA 600

DLA 600F

Output Torque:

108 Nm

Output Speed:

24 rpm

Part number:

10004578 00001

Description:

DLA600 3~ BOS (Rem. F/Link)

Motor power:

400 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

1.0 A

Sprocket fitted:

10T 5/8"

Protection:

IP20

Fuse link attached:

Yes

Tube motors Simu

Tube motors Simu

Simu T6M

Output Torque:

120 Nm

Output Speed:

12 rpm

Motor power:

240-400W

DLA Fire Shutter Drive DLA 800AC

DLA Fire Shutter Drive AC DLA 800

DLA 800AC

Output Torque:

140 Nm

Output Speed:

17 rpm

Part number:

10004584 00006

Description:

DLA800 3~ BOS (Actuator)

Motor power:

540 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

1.5 A

Sprocket fitted:

11T 3/4"

Protection:

IP20

Fuse link attached:

No

DLA Fire Shutter Drive DLA 800ACF

DLA Fire Shutter Drive ACF DLA 800

DLA 800ACF

Output Torque:

140 Nm

Output Speed:

17 rpm

Part number:

10004584 00007

Description:

DLA800 3~ BOS (Actuator)

Motor power:

540 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

1.5 A

Sprocket fitted:

11T 3/4"

Protection:

IP20

Fuse link attached:

Yes

Image not available

DLA Fire Shutter Drive F DLA 800

DLA 800F

Output Torque:

140 Nm

Output Speed:

17 rpm

Part number:

10004586 00001

Description:

DLA800 3~ BOS (Rem. F/Link)

Motor power:

540 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

1.5 A

Sprocket fitted:

11T 3/4"

Protection:

IP20

Fuse link attached:

Yes

ELEKTROMATEN FS 15

FS_NES FS_DES
ELEKTROMATEN FS 15

FS 15.20

Output Torque:

150 Nm

Output Speed:

20 rpm

Output Shaft (Ø):

25 mm

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES

Brake:

Magnetic brake

ELEKTROMATEN FS 15

FS_NES FS_DES
ELEKTROMATEN FS 15

FS 15.20 new

Output Torque:

150 Nm

Output Speed:

20 rpm

Output Shaft (Ø):

25 mm

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES

Brake:

Magnetic brake

ELEKTROMATEN FS 25

FS_NES FS_DES
UB-1 UB-2
ELEKTROMATEN FS 25

FS 25.20

Output Torque:

250 Nm

Output Speed:

20 rpm

Output Shaft (Ø):

30 mm

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES

Brake:

Universal brake UB

Tube motors Simu

Tube motors Simu

Simu T8SM

Output Torque:

300 Nm

Output Speed:

8 rpm

Motor power:

450-855W

DLA Fire Shutter Drive DLA 1000AC

DLA Fire Shutter Drive AC DLA 1000

DLA 1000AC

Output Torque:

300 Nm

Output Speed:

10 rpm

Part number:

10005082 00001

Description:

DLA1000 3~ BOS (Actuator)

Motor power:

760 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

0.8 A

Sprocket fitted:

11T 3/4"

Protection:

IP20

Fuse link attached:

No

DLA Fire Shutter Drive DLA 1000ACF

DLA Fire Shutter Drive ACF DLA 1000

DLA 1000ACF

Output Torque:

300 Nm

Output Speed:

10 rpm

Part number:

10005082 00002

Description:

DLA1000 3~ BOS (Act-F/Link)

Motor power:

760 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

0.8 A

Sprocket fitted:

11T 3/4"

Protection:

IP20

Fuse link attached:

No

Image not available

DLA Fire Shutter Drive F DLA 1000

DLA 1000F

Output Torque:

300 Nm

Output Speed:

10 rpm

Part number:

14401800 00003

Description:

DLA1000 3~ BOS (Rem. F/Link)

Motor power:

760 W

Limit range turns:

40

Supply voltage:

400V 3~50Hz

Motor rated current:

0.8 A

Sprocket fitted:

11T 3/4"

Protection:

IP20

Fuse link attached:

Yes

ELEKTROMATEN FS 50

FS_NES FS_DES
UB-1 UB-2
ELEKTROMATEN FS 50

FS 50.20

Output Torque:

500 Nm

Output Speed:

20 rpm

Output Shaft (Ø):

40 mm

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES

Brake:

Universal brake UB

ELEKTROMATEN FT SG50R-SG85

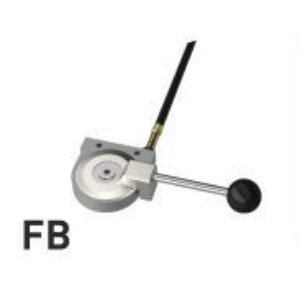

FT_ER FT_FB
SG50_NES SG50_DES
ELEKTROMATEN FT SG50R-SG85

FT 60.4

Output Torque:

600 Nm

Output Speed:

4 rpm

Manual Operation Options:

Release device ER Gear release lever with cable FB

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES

Opening/closing time(150° at torque arm):

6 s

ELEKTROMATEN FT SG50R-SG85
FT_ER FT_FB
SG50_NES SG50_DES
ELEKTROMATEN FT SG50R-SG85

FT 80.2

Output Torque:

800 Nm

Output Speed:

2 rpm

Manual Operation Options:

Release device ER Gear release lever with cable FB

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES

Opening/closing time(150° at torque arm):

13 s

ELEKTROMATEN FT SG50R-SG85
FT_ER FT_FB
SG50_DES
ELEKTROMATEN FT FI SG50R-SG85

FT 80.5 FI

Output Torque:

800 Nm

Output Speed:

5 rpm

Manual Operation Options:

Release device ER Gear release lever with cable FB

Limit Switch Options:

Digital limit switch DES

Opening/closing time(150° at torque arm):

5 s

ELEKTROMATEN FS 110

FS_NES FS_DES
UB-1 UB-2
ELEKTROMATEN FS 110

FS 110.18

Output Torque:

1100 Nm

Output Speed:

18 rpm

Output Shaft (Ø):

50 mm

Limit Switch Options:

Digital limit switch DES Mechanical limit switch NES

Brake:

Universal brake UB

Go back to View All Products

Enquire about a product

Alternatively talk to sales on 01926452452
We are open 8:30am - 5pm Monday - Friday.

Don’t see a product to match your requirements?

Get in touch now

01926 452 452 (Option 1)
